Product introduction

　　1: Versatility

　　1.1: Body size: 48mm * 60mm * 75mm

　　1.2: Voltage range: DC3V ~ DC220V

　　1.3: Suitable stroke: 0-30mm, recommended within 22mm

　　1.4: Strength: strength can be customized according to different power and stroke

　　1.5: Working style: Push type (S) / pull type (L) are optional,

　　1.6: Reset method: spring / mechanism reset

　　Two: electrical parameters

　　Model: DU1649L / S

　　2.1: Reference value

　　2.2: Insulation resistance: 220MΩ between coil and frame (DC500V normal temperature / humidity)

　　2.3: Withstand voltage: AC1200V (50 / 60Hz) 1Sec (breakdown current 10mA) (between coil and case)

　　2.4: Working temperature and humidity: -5 ℃ ~ + 55 ℃, 5% RH -85% RH

　　2.5: Appearance without damage, cracks, rust, surface stains

 Dimensions

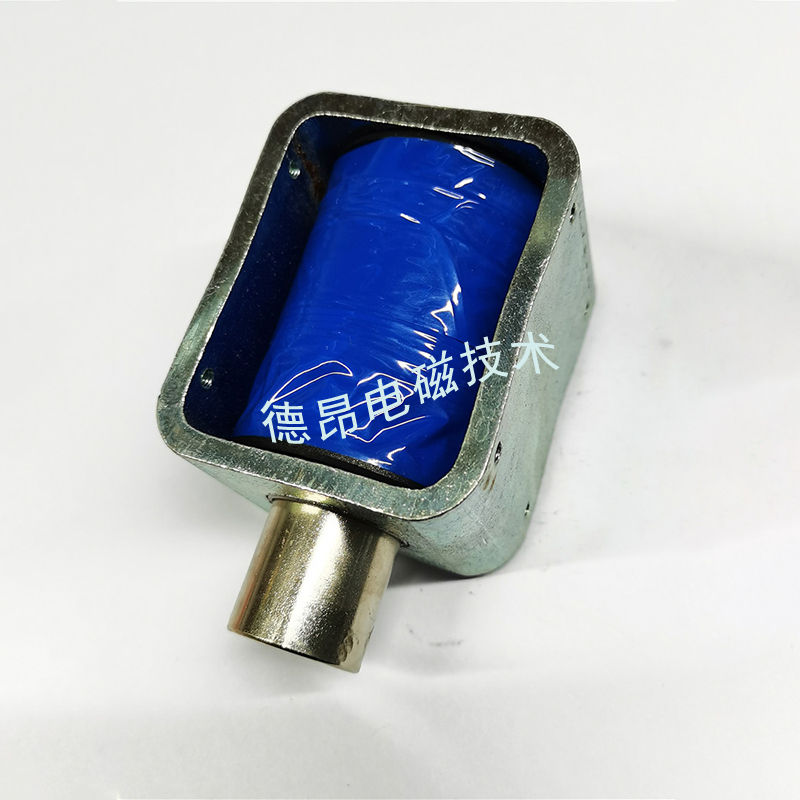

 Products real shot
