Double holding solenoid

DKD0724New energy charging gun electromagnetic lock-DC bidirectional holding solenoid



 Product introduction

  1: Versatility

  1.1: Body size: length 24mm * width 17mm * height 17mm

  1.2: Voltage range: DC3V ~ DC60V, it is recommended to choose DC12V or more

  1.3: Suitable stroke: 0 ~ 8mm, recommended within 6mm

  1.4: Working style: two-way keep push-pull

  1.5: Holding strength: 6N (the holding strength can be customized)

  1.6: Reset method: switch current direction

  Two: electrical parameters

  Model: DKD0724L / S

  2.1: Reference value

Power-on rate = 100% X power-on time power-on time + power-off time 100% 50% 25% 10%
Continuous power Interval power
Maximum power-on time (seconds) F 120 8 2
Power W (20 ℃) 3.7 7.5 15 32
Model-DC voltage Current (A) / Resistance (Ω)
DKD0724L / S -6V 0.61 / 9.7 1.25 / 4.8 2.5 / 2.4 5.3 / 1.1
DKD0724L / S -12V 0.3 / 39 0.6 / 19 1.3 / 9.6 2.6 / 4.5
DKD0724L / S -24V 0.15 / 155.7 0.31 / 76.8 0.63 / 38.4 1.33 / 18

  2.2: Insulation resistance: 220MΩ between coil and frame (DC500V normal temperature / humidity)

  2.3: Withstand voltage: AC1200V (50 / 60Hz) 1Sec (breakdown current 10mA) (between coil and case)

  2.4: Working temperature and humidity: -5 ℃ ~ + 55 ℃, 5% RH -85% RH

  2.5: Appearance without damage, cracks, rust, surface stains

 Dimensions

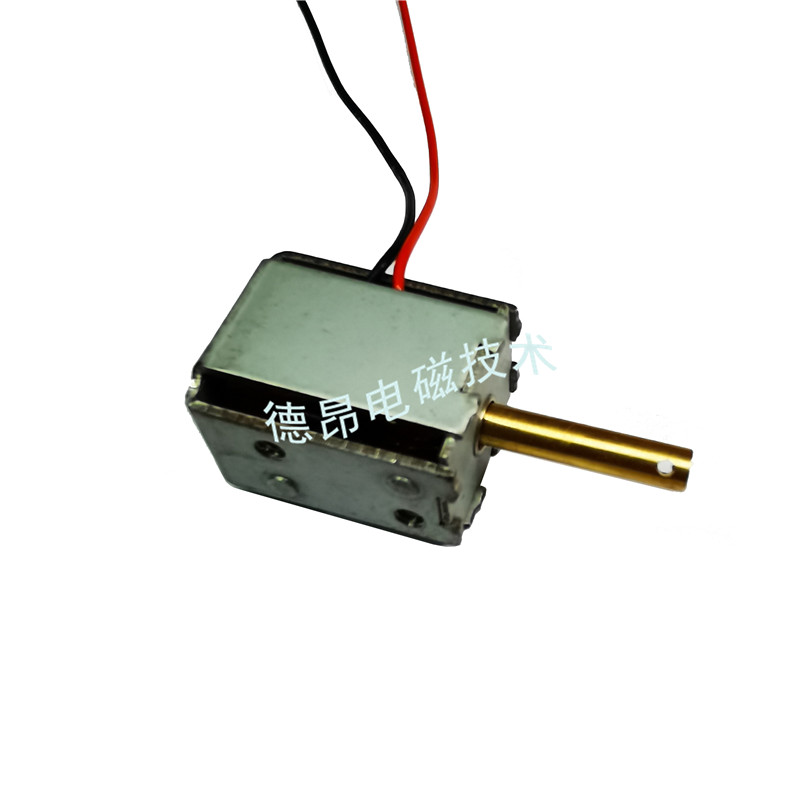

 Products real shot
