Product introduction
1: Versatility
1.1: Body size: 40mm diameter, 26mm length
1.2: Voltage range: DC6V ~ DC220V
1.3: Suitable stroke: 0mm
1.4: Strength: suction power can be customized according to different power
1.5: Working style: power on and pull on, power off and release
Two: electrical parameters
Model: DX4026 Robotic Electromagnetic Sucker
2.1: Reference value
| Power-on rate = 100% X power-on time power-on time + power-off time | 100% | 50% | 25% | 10% |
| Continuous power | Interval power | |||
| Maximum power-on time (seconds) | F | 120 | 14 | 2 |
| Power W (20 ℃) | 5.5 | 11 | twenty two | 50 |
| Model-DC voltage | Current (A) / Resistance (Ω) | |||
| DX4026L12V | 0.46 / 26.2 | 0.92 / 13.1 | 1.83 / 6.5 | 4.2 / 2.88 |
| DX4026L24V | 0.23 / 104.7 | 0.45 / 52.3 | 0.92 / 26.2 | 2.08 / 11.5 |
| DX4026L48V | 0.11 / 418.9 | 0.23 / 209.5 | 0.46 / 104.7 | 1.04 / 46.1 |
| 0mm reference suction force (kg) | 60 | 72 | 83 | 95 |
2.2: Insulation resistance: 220MΩ between coil and frame (DC500V normal temperature / humidity)
2.3: Withstand voltage: AC1200V (50 / 60Hz) 1Sec (breakdown current 10mA) (between coil and case)
2.4: Working temperature and humidity: -5 ℃ ~ + 55 ℃, 5% RH -85% RH
2.5: Appearance without damage, cracks, rust, surface stains
Dimensions

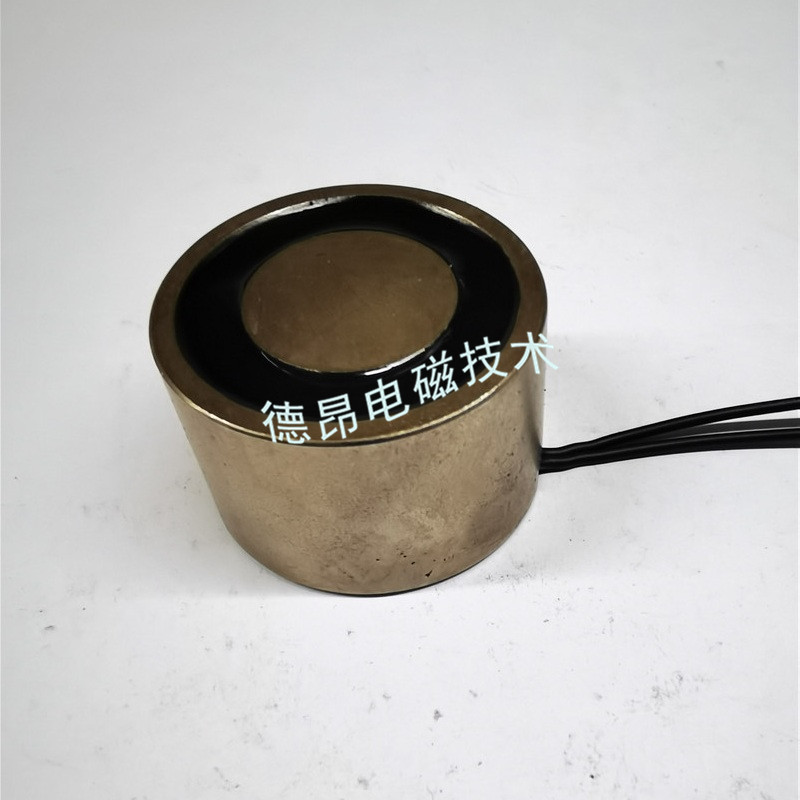

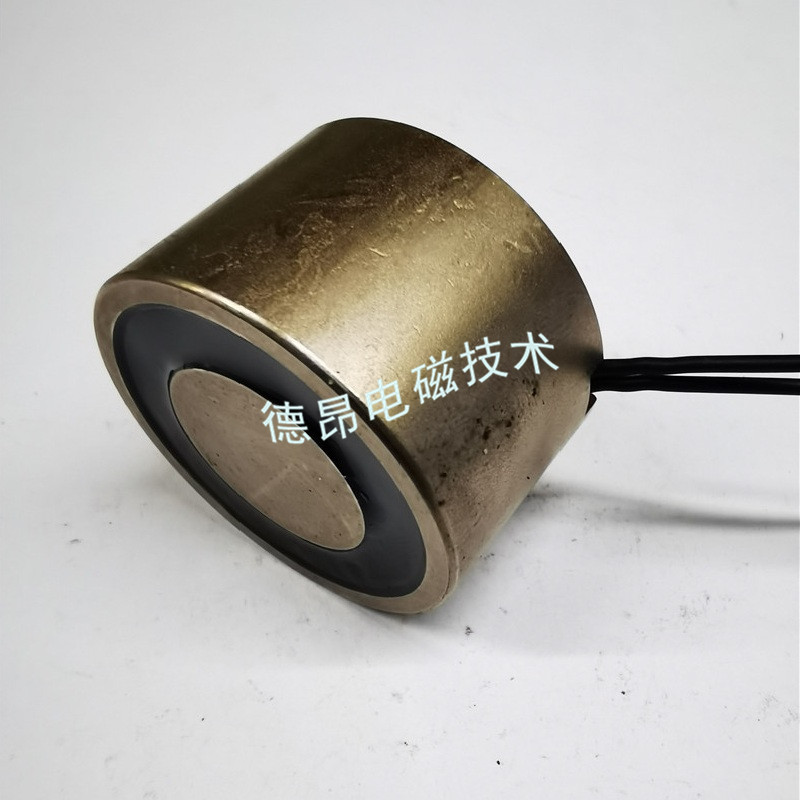

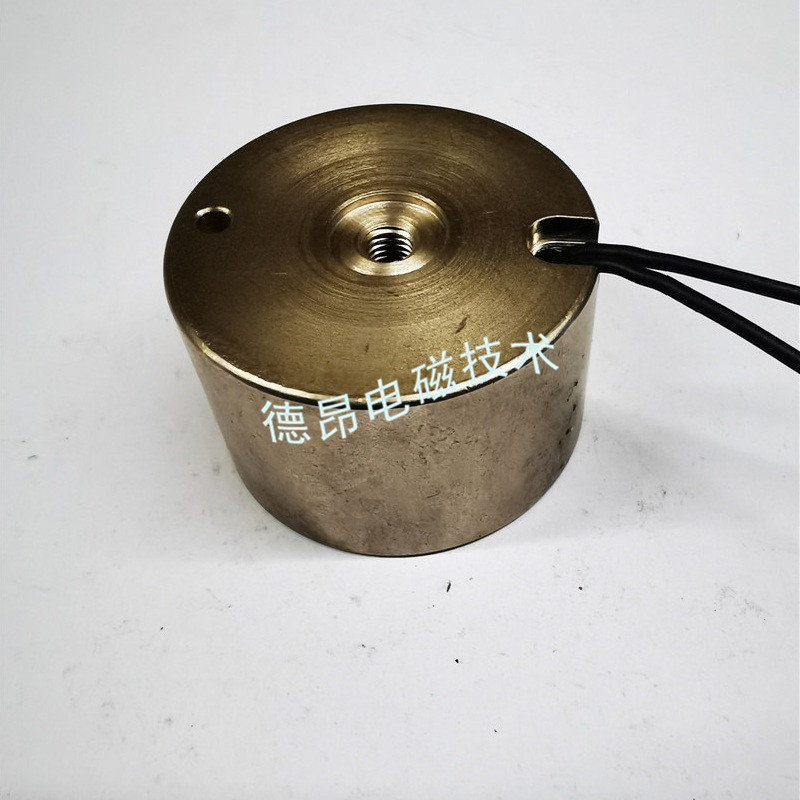

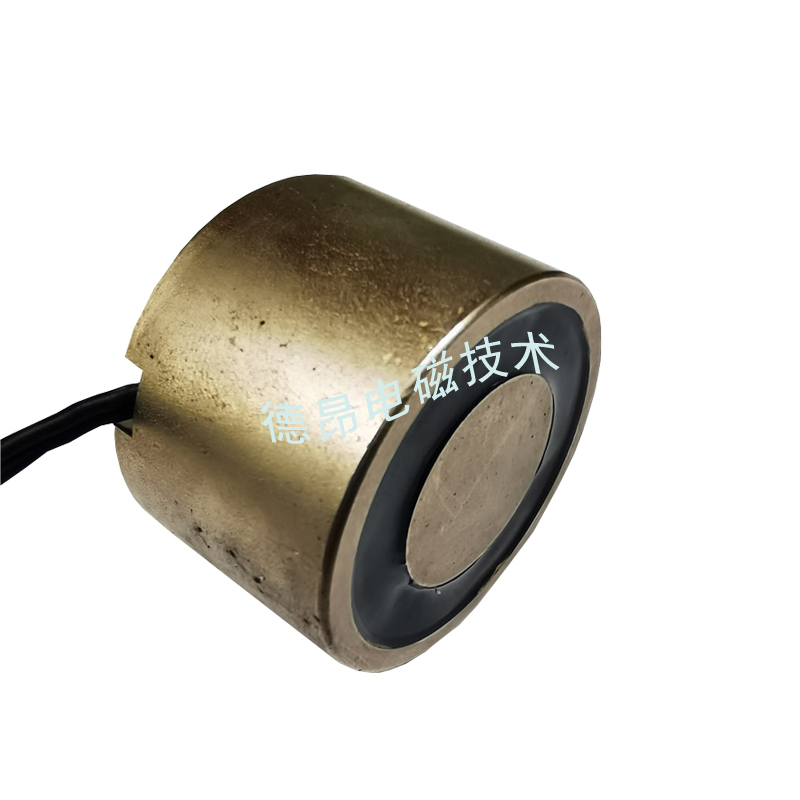

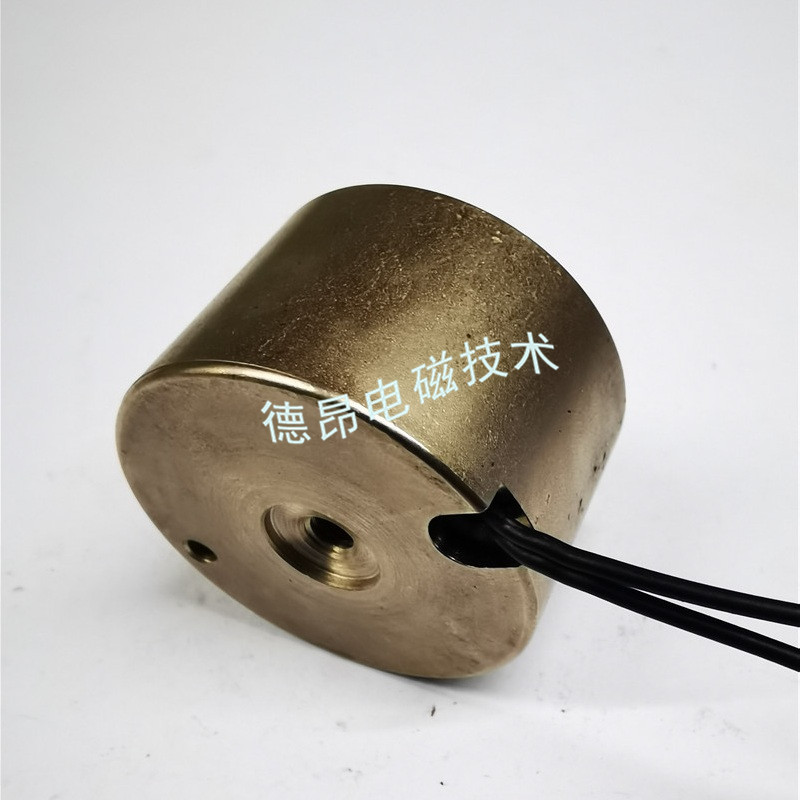

Products real shot
