Product introduction
1: Versatility
1.1: Body size: length 26mm * width 24mm * height 24mm
1.2: Voltage range: DC1.5V ~ DC48V, it is recommended to choose DC6V or more
1.3: Working style: suction tap
1.4: Fitting angle: 25 °
1.5: Reset method: spring reset
Two: electrical parameters
Model: DWP0624
2.1: Reference value
| Power-on rate = 100% X power-on time power-on time + power-off time | 100% | 50% | 25% | 10% |
| Continuous power | Interval power | |||
| Maximum power-on time (seconds) | F | 120 | 10 | 2 |
| Power W (20 ℃) | 3.5 | 7 | 14 | 30 |
| Model-DC voltage | Current (A) / Resistance (Ω) | |||
| DWP0624 -6V | 0.58 / 10.3 | 1.16 / 5.1 | 2.33 / 2.57 | 5 / 1.2 |
| DWP0624 -12V | 0.29 / 41.1 | 0.58 / 20.6 | 1.16 / 10.3 | 2.5 / 4.8 |
| DWP0624 -24V | 0.15 / 164.6 | 0.29 / 82.3 | 0.58 / 41.1 | 1.25 / 19.2 |
2.2: Insulation resistance: 220MΩ between coil and frame (DC500V normal temperature / humidity)
2.3: Withstand voltage: AC1200V (50 / 60Hz) 1Sec (breakdown current 10mA) (between coil and case)
2.4: Working temperature and humidity: -5 ℃ ~ + 55 ℃, 5% RH -85% RH
2.5: Appearance without damage, cracks, rust, surface stains
Dimensions

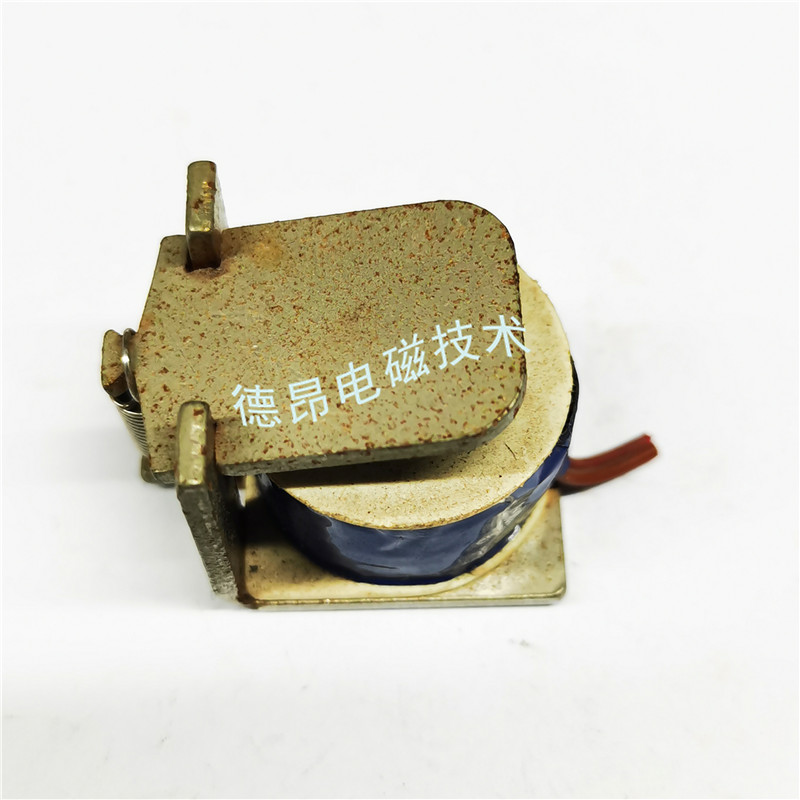

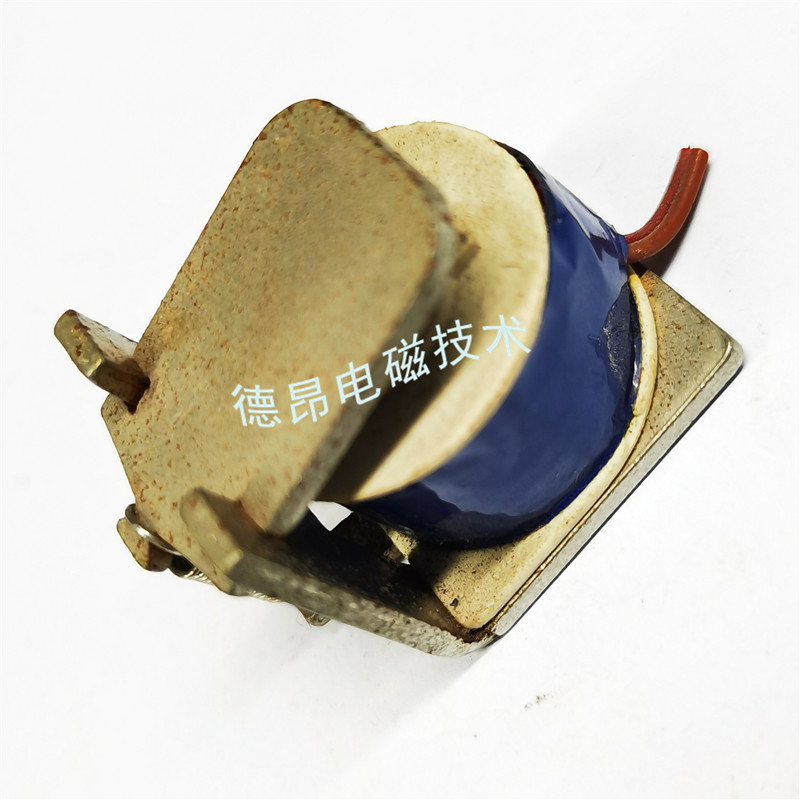

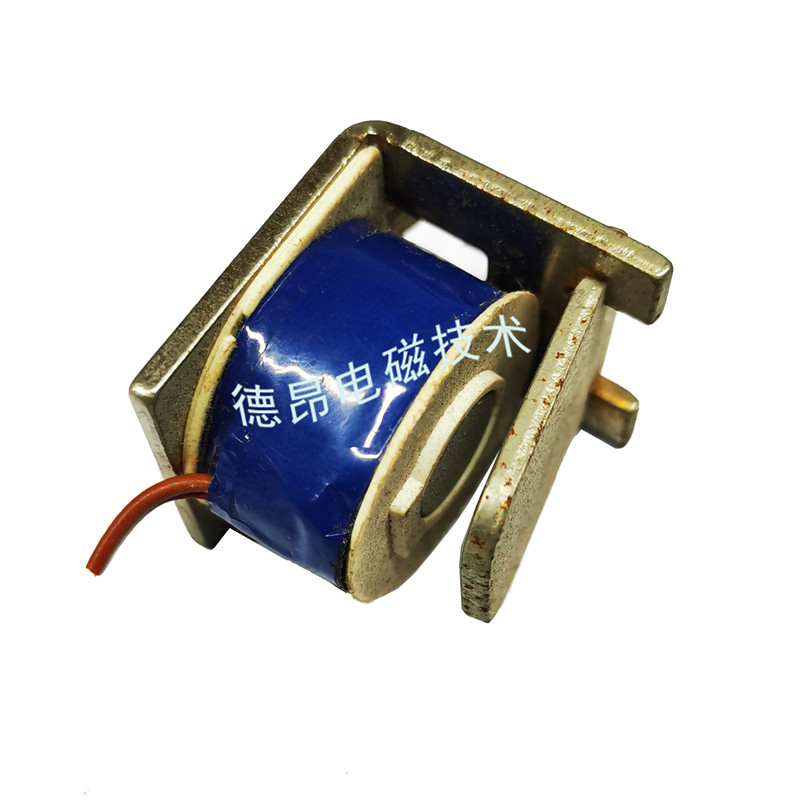

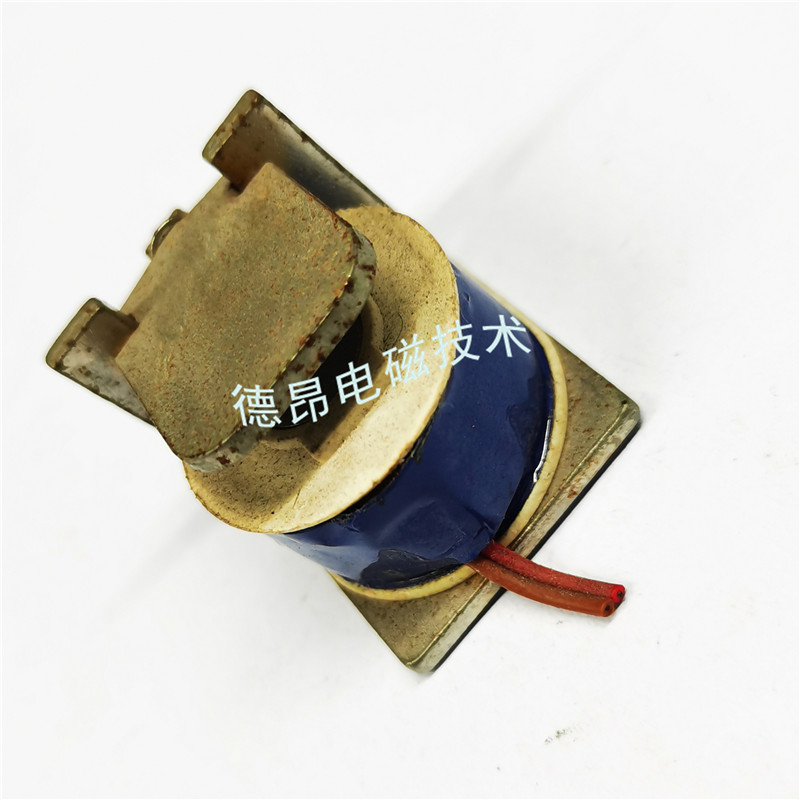

Products real shot
