Product introduction
1: Versatility
1.1: Body size: length 2000mm * width 60mm * thickness 40mm
1.2: Voltage range: DC9V ~ DC220V, DC24V or above is recommended.
1.3: Suitable stroke: 0mm
1.4: Working style: suction type,
1.5: Attraction: 1500N
Two: electrical parameters
Model: DX2006040S
2.1: Reference value
| Power-on rate = 100% X power-on time / power-on time + power-off time | 100% | 50% | 25% | 10% |
| Continuous power | Interval power | |||
| Maximum power-on time (seconds) | F | 130 | 30 | 5 |
| Power W (20 ℃) | 40 | 80 | 160 | 350 |
| Model-DC voltage | Current (A) / Resistance (Ω) | |||
| DX2006040S -24V | 1.66 / 14.4 | 3.3 / 7.2 | 6.6 / 3.6 | 12.5 / 1.92 |
| DX2006040S -48V | 0.83 / 57.6 | 1.66 / 28.8 | 3.33 / 14.4 | 6.25 / 7.68 |
| DX2006040S -60V | 0.66 / 90 | 1.33 / 45 | 2.66 / 22.5 | May 12 |
2.2: Insulation resistance: 220MΩ between coil and frame (DC500V normal temperature / humidity)
2.3: Withstand voltage: AC1200V (50 / 60Hz) 1Sec (breakdown current 10mA) (between coil and case)
2.4: Working temperature and humidity: -5 ℃ ~ + 55 ℃, 5% RH -85% RH
2.5: Appearance without damage, cracks, rust, surface stains
Dimensions

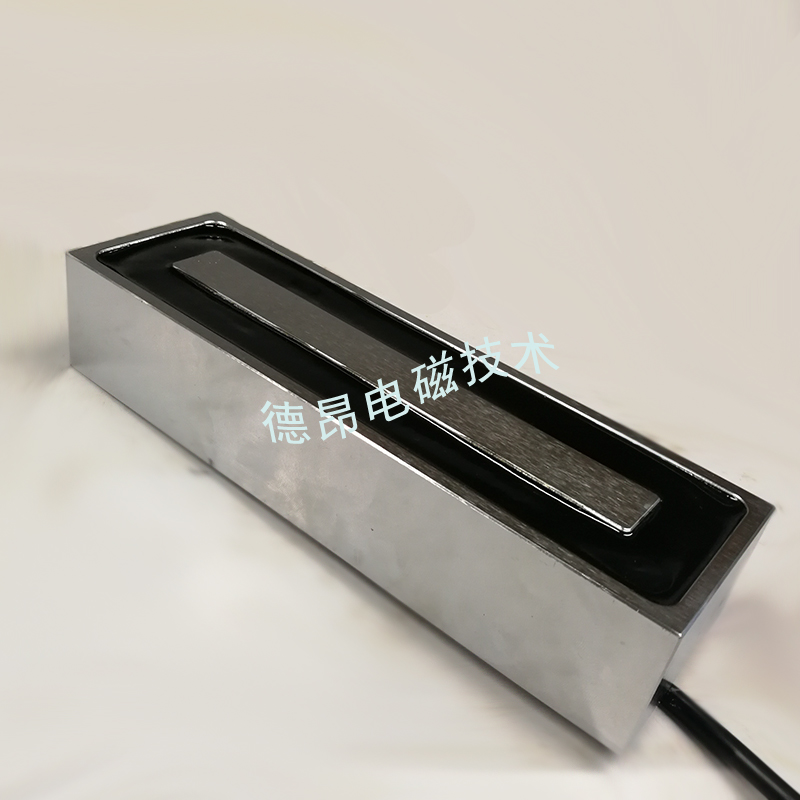

Products real shot
