Product introduction
1: Versatility
1.1: Body size: diameter 25mm * height 25mm
1.2: Voltage range: DC6V ~ DC60V, it is recommended to choose DC9V or more
1.3: Suitable stroke: 0mm
1.4: Working style: self-holding type
1.5: Holding force: 30N (without power)
Two: electrical parameters
Model: DKX2525L
2.1: Reference value
| Power-on rate = 100% X power-on time / power-on time + power-off time | 100% | 50% | 25% | 10% |
| Continuous power | Interval power | |||
| Maximum power-on time (seconds) | F | 150 | 30 | 4 |
| Power W (20 ℃) | 3 | 6 | 12 | 25 |
| Model-DC voltage | Current (A) / Resistance (Ω) | |||
| DKX2525L -9V | 0.33 / 27 | 0.66 / 13.5 | 1.33 / 6.75 | 2.77 / 3.24 |
| DKX2525L -12V | 0.25 / 48 | 0.5 / 24 | January 12 | 2.08 / 5.76 |
| DKX2525L -24V | 0.125 / 192 | 0.25 / 96 | 0.5 / 48 | 1.04 / 23 |
2.2: Insulation resistance: 220MΩ between coil and frame (DC500V normal temperature / humidity)
2.3: Withstand voltage: AC1200V (50 / 60Hz) 1Sec (breakdown current 10mA) (between coil and case)
2.4: Working temperature and humidity: -5 ℃ ~ + 55 ℃, 5% RH -85% RH
2.5: Appearance without damage, cracks, rust, surface stains
Dimensions

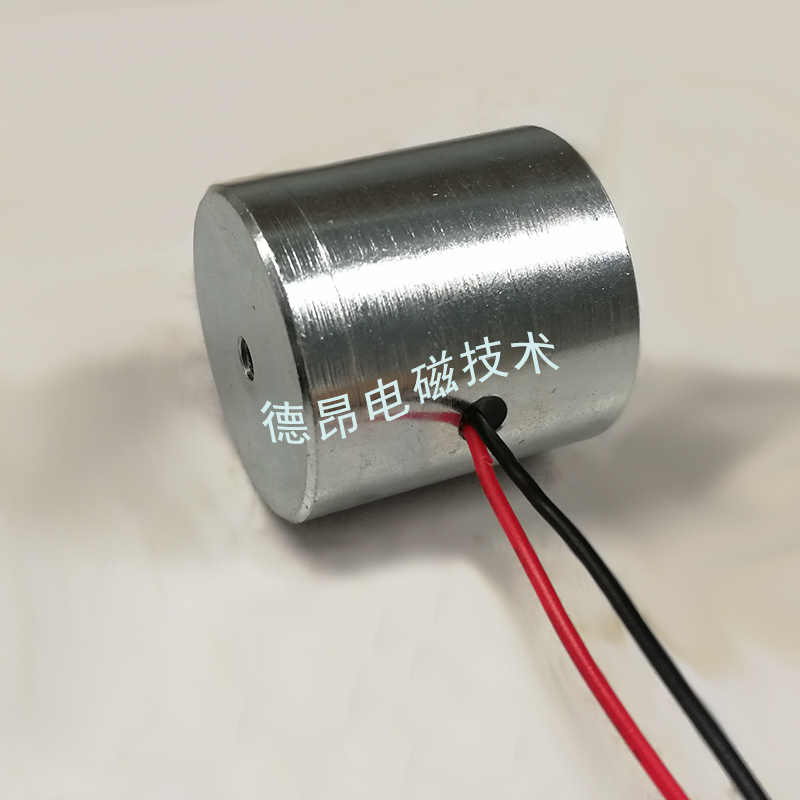

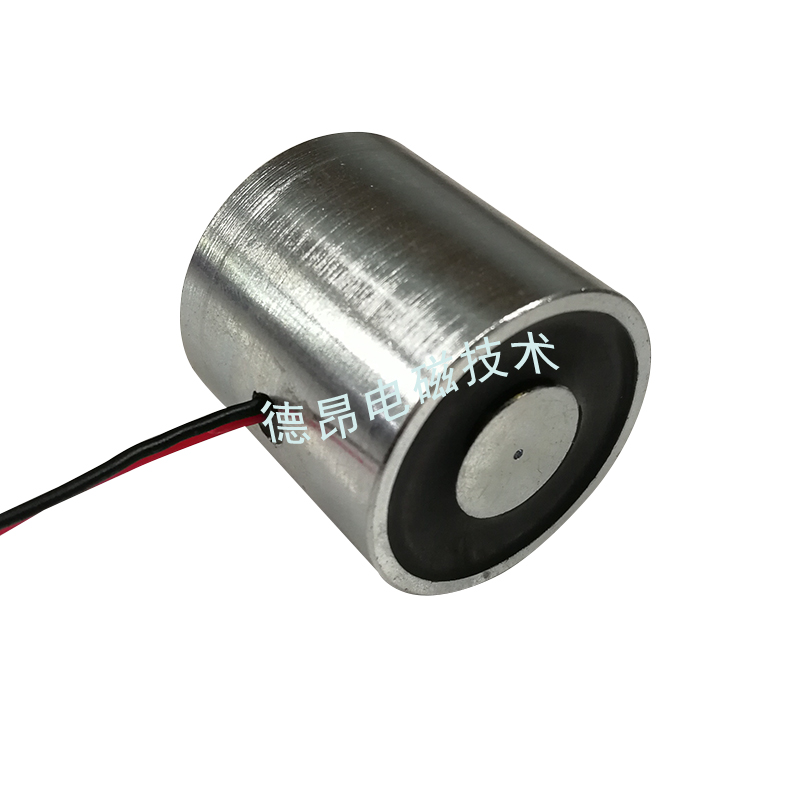

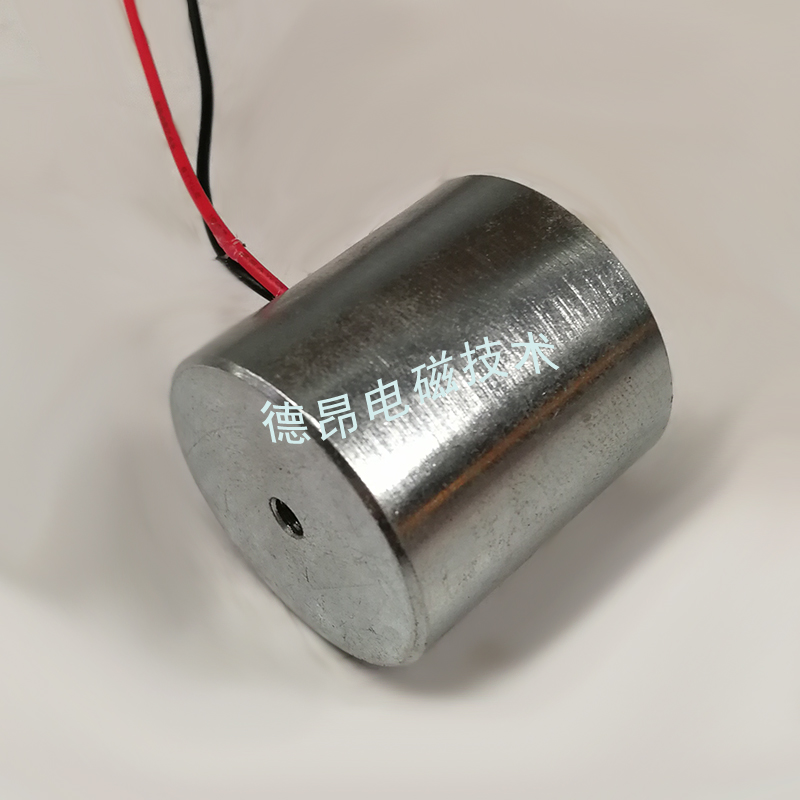

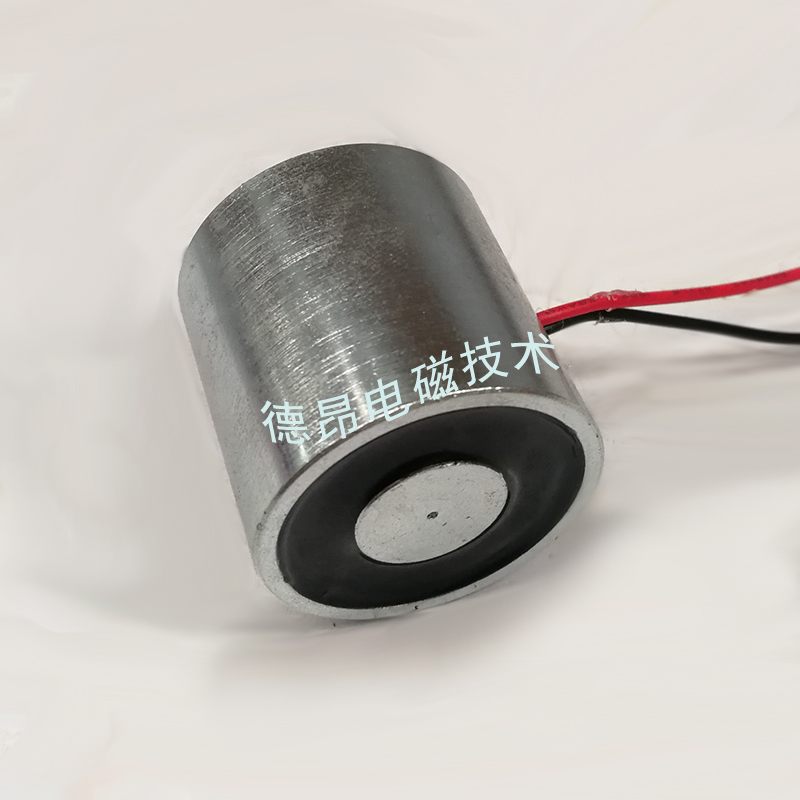

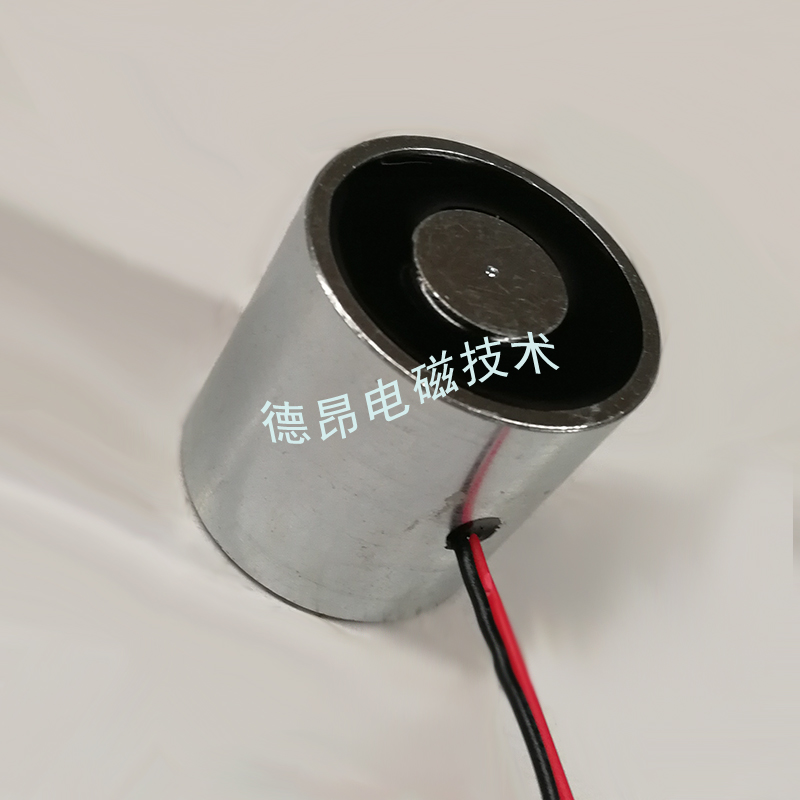

Products real shot
