Product introduction
1: Versatility
1.1: Body size: 40mm diameter, 50mm length
1.2: Voltage range: DC6V ~ DC220V
1.3: Suitable stroke: 0mm
1.4: Strength: suction power can be customized according to different power
1.5: Working style: power on and pull on, power off and release
Two: electrical parameters
Model: DX4050 Suction Electromagnet
2.1: Reference value
| Power-on rate = 100% X power-on time power-on time + power-off time | 100% | 50% | 25% | 10% |
| Continuous power | Interval power | |||
| Maximum power-on time (seconds) | F | 150 | 25 | 3 |
| Power W (20 ℃) | 7 | 14 | 28 | 60 |
| Model-DC voltage | Current (A) / Resistance (Ω) | |||
| DX4050L-12V | 0.58 / 20.6 | 1.16 / 10.3 | 2.33 / 5.1 | 5 / 2.4 |
| DX4050L-24V | 0.29 / 82.3 | 0.58 / 41.1 | 1.16 / 20.6 | 2.5 / 9.6 |
| DX4050L-48V | 0.15 / 329 | 0.29 / 164.6 | 0.58 / 82.3 | 1.25 / 38.4 |
| 0mm reference suction force (kg) | 30 | 42 | 55 | 63 |
2.2: Insulation resistance: 220MΩ between coil and frame (DC500V normal temperature / humidity)
2.3: Withstand voltage: AC1200V (50 / 60Hz) 1Sec (breakdown current 10mA) (between coil and case)
2.4: Working temperature and humidity: -5 ℃ ~ + 55 ℃, 5% RH -85% RH
2.5: Appearance without damage, cracks, rust, surface stains
Dimensions

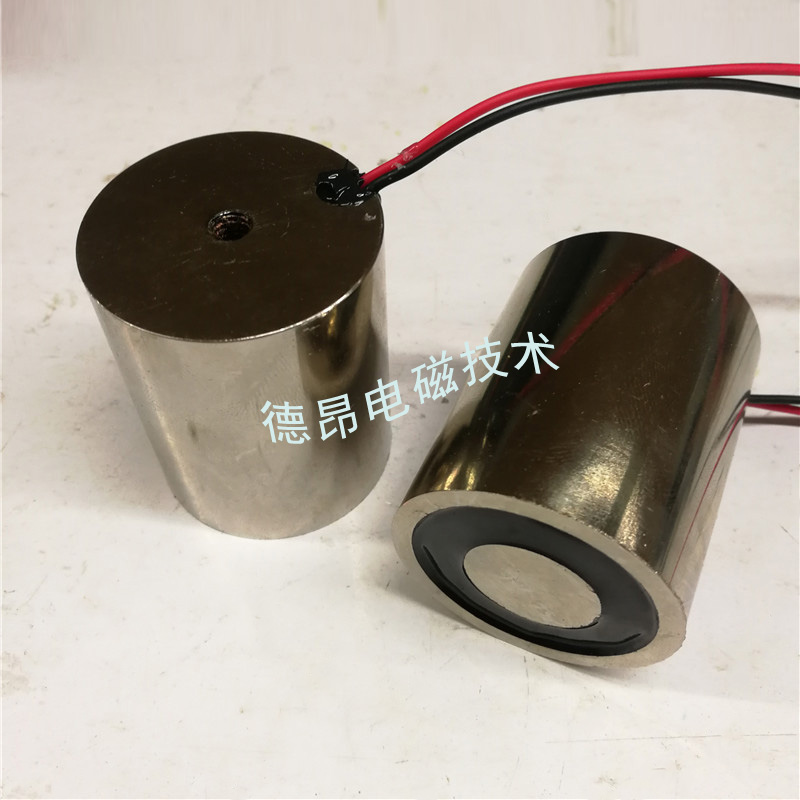

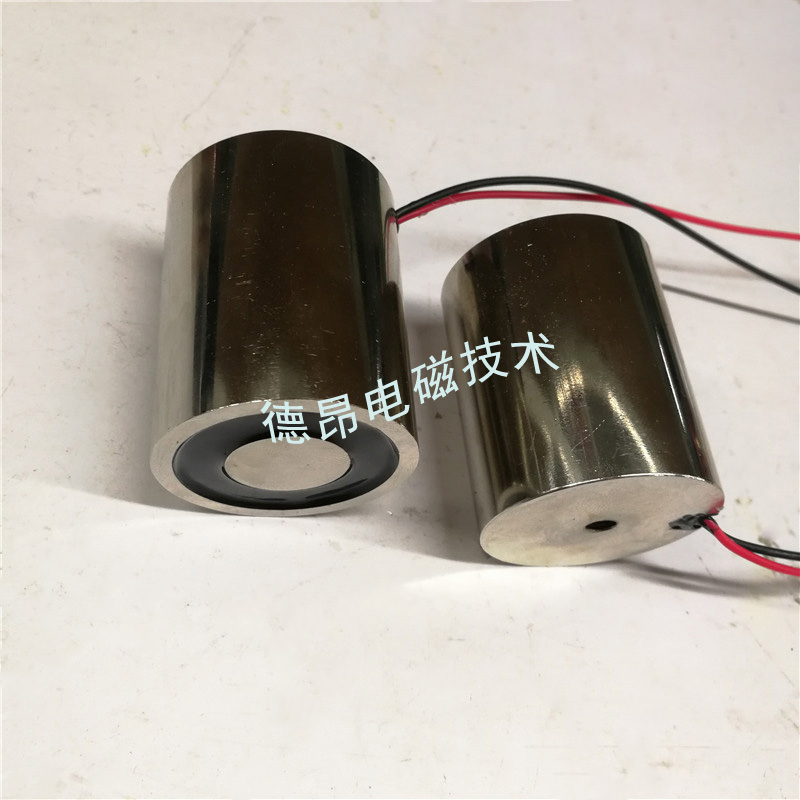

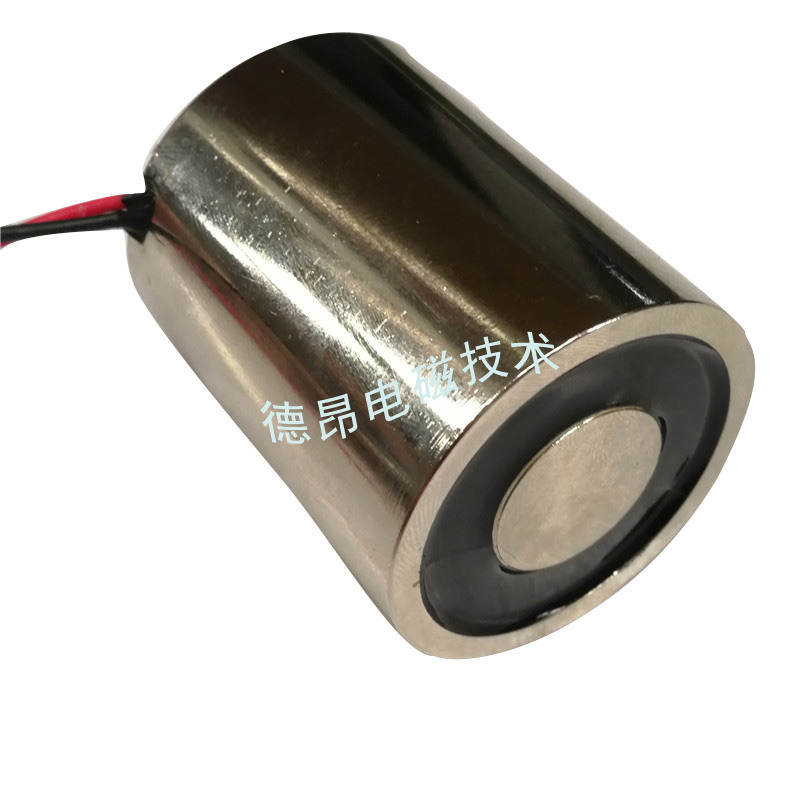

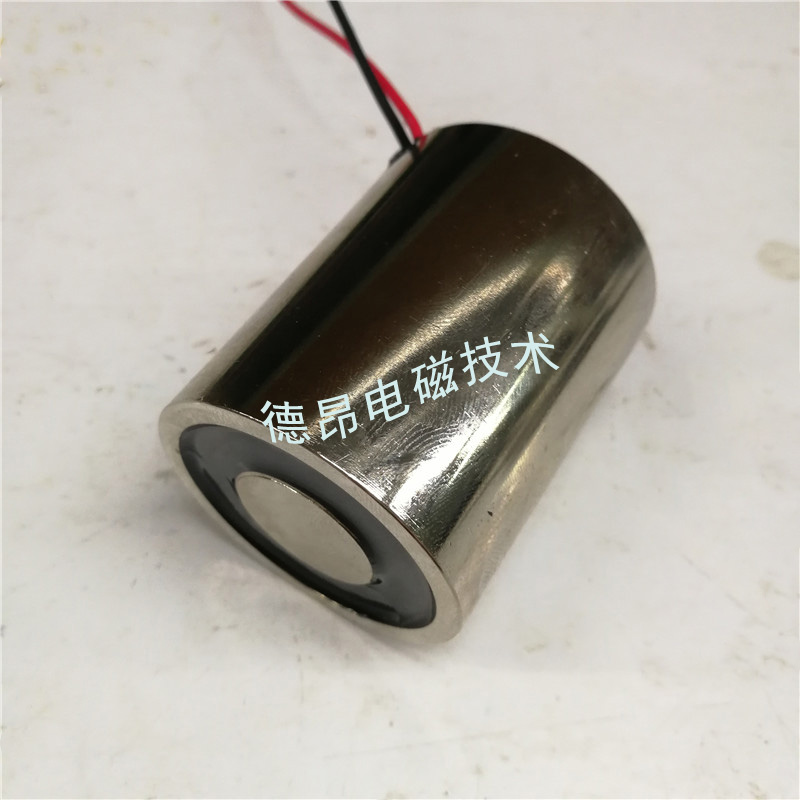

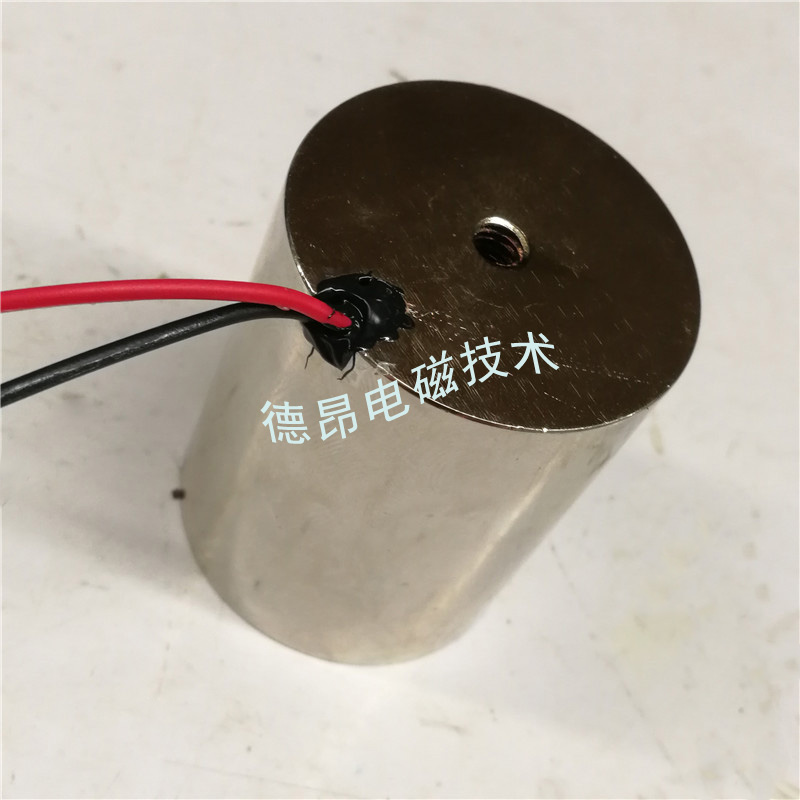

Products real shot
